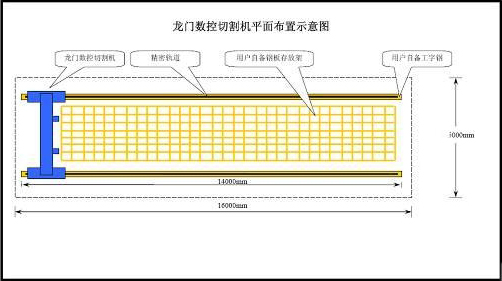

| ● | Rack form | Gantry type frame structure, overall tempering sand blasting |
| ● | Rail spacing | 4000mm |
| ● | Rail Length | 12000mm |
| ● | Rail Model | 43KG/meter heavy rail, each piece/2m |
| ● | Drive method | (Panasonic) Servo bilateral drive |
| ● | CNC system | Shanghai Fangling F2500B |
| ● | Console Location | Seat, right operation |
| ● | Electronic control part | Chint Electric 1 set |
| ● | CNC torch moving body | Aluminum 1 set |
| ● | Drive System | Japan Panasonic servo 3 sets |
| ● | Reduction System | Suzhou HFR 3 sets |
| ● | Lateral mechanical transmission | Precision Rack & Pinion 1set |
| ● | Longitudinal Mechanical Transmission | Precision Rack 2 Sets |
| ● | Lateral routing | Energy chain 1 set |
| ● | CNC flame torch | 1 set |
| ● | Vertical and horizontal electronic limit switch | 4 sets |
| ● | Longitudinal mechanical limit device | 2 |
| ● | Effective cutting width | ≤3200 mm |
| ● | Effective cutting length | ≤10000 mm |
| ● | Flame Cut Thickness | 5-200mm |
| ● | Air travel speed | 20-6000 mm/mi infinitely adjustable |
| ● | Flame Cut Materials | Carbon Steel |
| ● | Torch lift stroke | ≤150mm |
| ● | Machine Accuracy Standard | Comply with JB/T5102-1999 |
| ● | Linear Positioning Accuracy | ± 0.2 mm / 1 m |
| ● | Linear Repeatability | ± 0.2 mm / 1 m |
| ● | Comprehensive Line Drawing Accuracy | Draw 800×800MM square, diagonal line, return to circle point accuracy ± 0.2 mm |
| ● | Speed ??error | 3% |
| ● | Cut Roughness (Quality Cut) | Ra≤12.5 |
| ● | Cutting Media | Propane, Oxygen |
| ● | Ambient temperature | -10℃～+40℃ |
| ● | Relative Humidity | ≤95% non-condensing |
| ● | Surroundings | Ventilation, no major impact |
| ● | Supply Voltage | 220V (AC)±10% |
| ● | Power frequency | 50HZ±1HZ |
| ● | Host input power | 3KW |
| ● | Oxygen inlet pressure | 0.8～1 Mpa |
| Image and structure part name | Featured Description |
 |

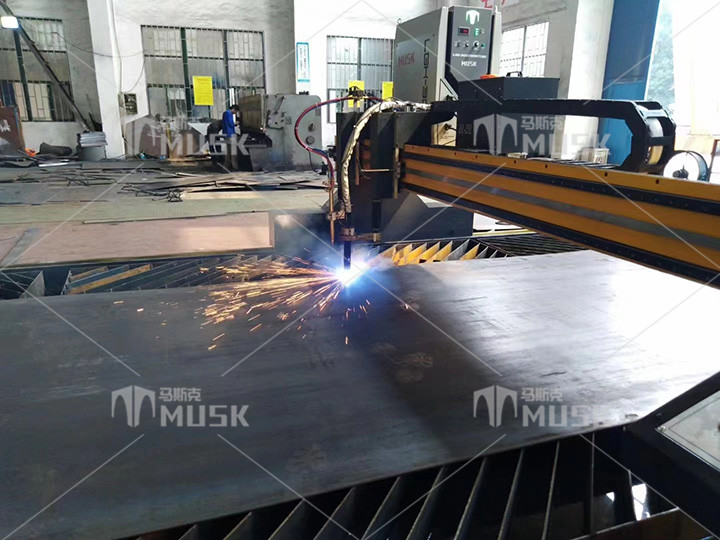

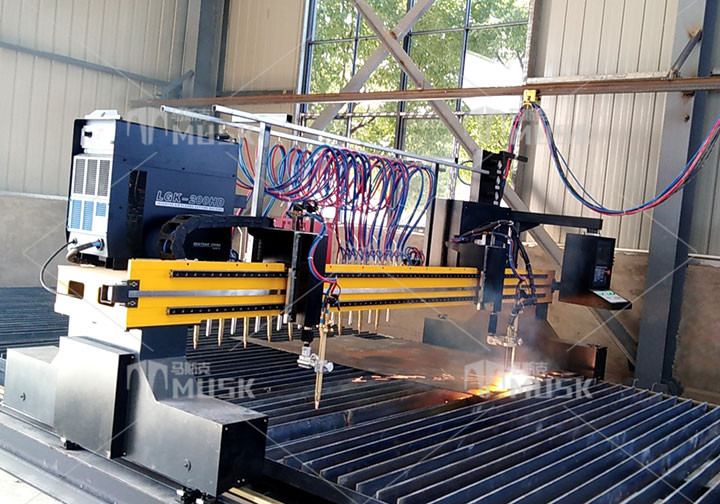

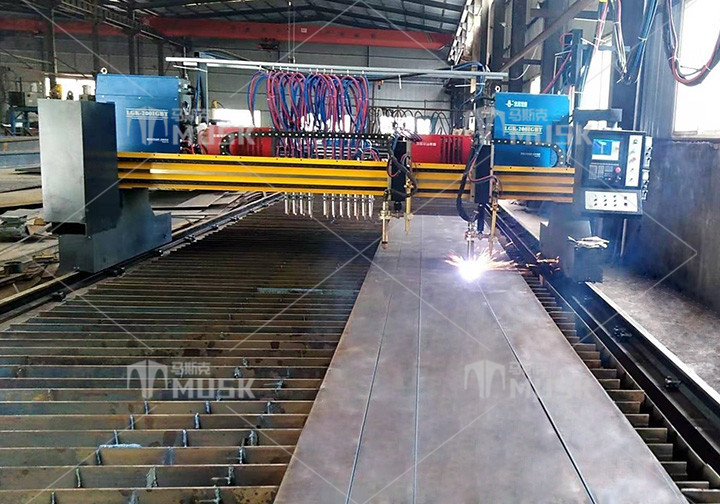

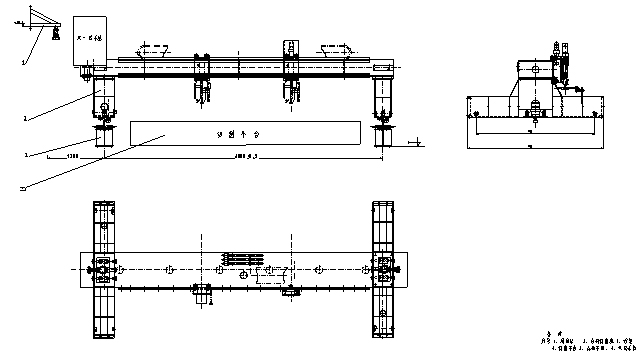

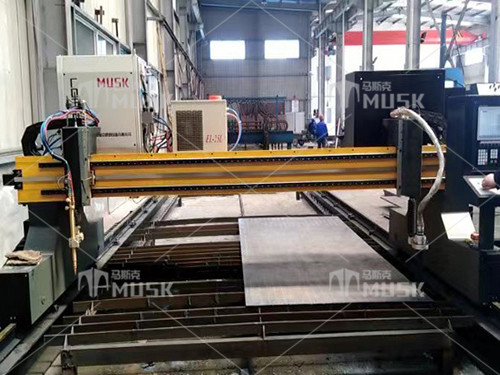

Design features: the equipment is stable in structure, beautiful in appearance and long in life Rack form: wide-body gantry type, suitable for large-span cutting End beam positioning: four-point positioning, stable center of gravity, good dynamic balance Processing method: welding, tempering in the furnace, surface sandblasting and spraying epoxy primer Stress relief treatment: the whole machine is tempered, and the vibration aging double treatment method can ensure the removal of welding stress |
 |
Drive mode: Japan Panasonic bilateral servo drive Transmission mode: rack and pinion servo high-precision positioning transmission Connection method: elastic meshing connection of rack and pinion Bearing method: four-wheel bearing, large outer spherical roller Protection measures: There are cleaning and dedusting copper skin devices at the front and rear ends |
 |
Features of electrical control cabinet: Customized by professional chassis factory, large-size box body has fast heat dissipation, beautiful appearance and good sealing performance, which effectively improves the service life of electrical components of the numerical control system, and the internal electrical components are arranged reasonably for easy maintenance. |
 |
Transmission gear processing method: The gear is made of No. 45 steel after precision gear hobbing, and the tooth surface is quenched to reach HRC40-45, and then undergoes high-precision gear grinding to make the gear precision meet the precision standard, so as to ensure the cumulative error of the machine during operation. reduce, so as to improve the cutting quality accuracy of the whole machine. |
